RS422 IMU Inertial Measurement Unit 60×60×70mm Inertial Navigation System OEM JT-IMU60A

Name: RS422 IMU Inertial Measurement Unit 606070mm Inertial Navigation System OEM JTIMU60A
Brand: JTZG
Price: 1 USD

Place of Origin : china

MOQ : negotiable

Price : negotiable

Delivery Time : According to customer's requirement

Payment Terms : Negotiable

Supply Ability : Strong production capacity

Brand Name : JTZG

Product Name : IMU Inertial Measurement Unit

Technology : Fiber Optic Gyroscope

Grade : Industrial

Applications : Aerospace, Defense, Navigation, Robotics

Customized Support : OEM, ODM

Communication : RS422 , customizable

Contact Now

JT-I MU60A Inertial Measurement System

The JT-IMU60A fiber optic inertial measurement unit uses a three-axis fiber optic gyroscope (FOG) to sense the angular motion of the carrier and output a digital signal proportional to the angular velocity of the carrier. The configured MEMS accelerometer senses the linear acceleration of the carrier, providing the best cost-effective solution. Compared with other similar gyro technologies, the fiber optic gyroscope has significant advantages in life and stability.

Gyro Level		standard	A
Range ( °/s )		±500
Bias stability ( °/ h , 10s )		0.5	0.2
Zero bias repeatability ( °/ h , 10s )		0.5	0.2
Random walk ( °/√h)		0.0 3	0.01
Startup time (s)		≤ 5
Magnetic shielding		The optical fiber ring of key sensitive devices has magnetic shielding
Scale factor nonlinearity (ppm)		≤ 100	≤ 50
Scale factor asymmetry (ppm)		≤ 100	≤ 50
Scale factor repeatability (ppm)		≤ 100	≤ 50
Acceleration measurement channel		parameter
Range (g)		±10 ( ±20 / ± 40 optional )
Bias ( mg )		± 125		± 0.7
Bias repeatability ( mg )				1.2
Bias stability ( μg )				15
Scale Factor		5 0000± 5 000 (LSB/g)		270 ( mV/g )
Scale factor repeatability (ppm)				≤ 400
Scale factor stability (ppm)				≤ 12 0
Non-linearity (%FSR)		0.1		0.3
Communication interface	J30J-15 TJN-J(J30J-15ZKL) , customizable
Communication	RS422 , customizable
Working voltage (V)	±5V power supply
Dimensions (mm)	60 × 60 × 70
Weight (g)	≤ 500
Operating temperature	-20 ℃ ~ + 60 ℃
	-40 ℃ ~ + 60 ℃
Storage temperature	-5 5 ℃ ~+8 5 ℃

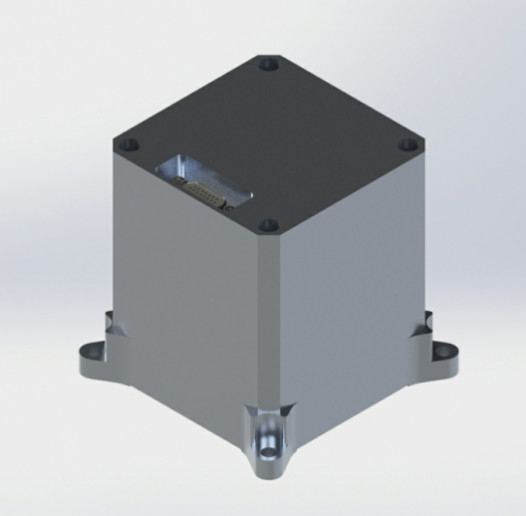

RS422 IMU Inertial Measurement Unit 60×60×70mm Inertial Navigation System OEM JT-IMU60A

JT-IMU60A installation dimension drawing
